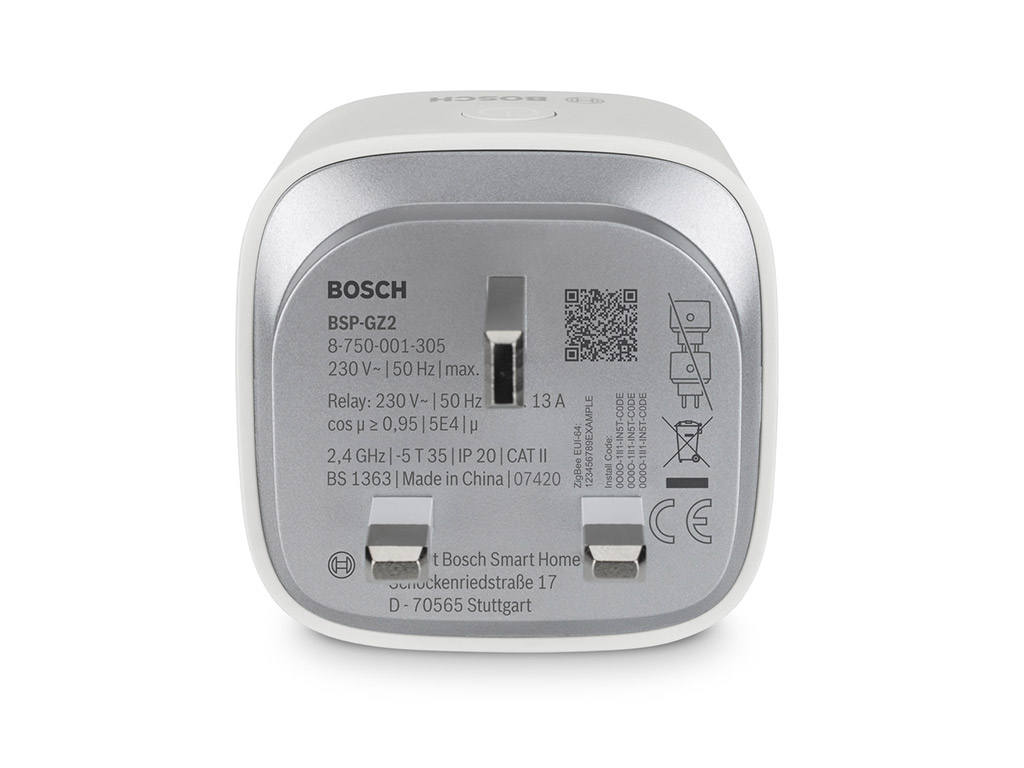

Plug Compact

Makes traditional electrical appliances smart

The little all-rounder: intelligent networking of traditional electrical appliances

The Plug Compact integrates traditional electrical appliances into your Bosch Smart Home System in a space-saving manner. Additionally, it expands the wireless signals of all HOME ZigBee devices, thus allowing previously unreached rooms to be connected.

Compact design

Small smart plug, big effect. Thanks to its compact design, the Plug Compact integrates traditional electrical appliances into the Bosch Smart Home System – without blocking other connectors. Ideal for narrow niches.

Save electricity costs

The timer simply switches unused devices on and off. You thus save electricity effectively and easily. Moreover, the integrated energy gauge measures the electricity consumption of the connected devices continuously and precisely.

Extend range

The Plug Compact acts as a wireless signal strengthener for most of our devices and other Plug Compacts. You thus integrate even previously unreachable rooms into your Smart Home System.

Helps to save energy

The Plug Compact measures the current and total energy consumption of your electrical appliance. It thus contributes to an energy-saving lifestyle. Integrated into automations, your little Smart Home socket triggers certain actions in the event of changes to the electricity consumption of your devices. You thus know when the washing machine is finished or your eBike is charged.

Compact and efficient

Do you want to connect your lamp and your coffee machine to a double socket? Thanks to the compact design compared to other wireless sockets, several Plug Compacts can be used side-by-side without blocking each other.

The only way to save even more space is with the smart relay, which is installed invisibly behind the socket.

Increases the range

The Plug Compact allows you to connect previously unreachable rooms on a smart basis. The smart socket has a function to strengthen the wireless signal of your:

Outdoor siren, motion detectors, radiator thermostats II, light/roller shutter controls II, smoke detectors II, room thermostats II, room thermostats II 230V, relays, door/window contacts II (Plus), twinguards, twists, universal switch II, water detectors and other plug compacts.

Wards off burglars

The Plug Compact enables the automated control of all lamps and electrical appliances, thus complementing your presence simulation – for even more effective protection from burglars.

Switch on and off using voice command

Once integrated, you can control your intelligent socket in various ways: by your fingertip in your app or via speech assistants such as Alexa or Google Assistant.

How it works

Save electricity when leaving home

Switch off all devices with one click when leaving home and put an end to standby power consumption. Of course, you can also switch devices back on at the Smart Plug at any time when you are on the road or check the status of your devices while on holiday.

Your washing machine thinks with you

Is the washing machine ready yet? Or not for half an hour? With the Smart Plug you do not have to get up and check. Enjoy a short break on the couch: your washing machine will tell you when the washing cycle is finished.

More burglary protection through presence simulation

No one has to know you are not at home. With our Smart Plug, every conventional lamp becomes a smart light. The "presence simulation" service makes your home always look inhabited - this will deter uninvited guests.

Extend the signal strength of faraway devices

Integrate previously unreachable rooms, such as your basement, into your Smart Home System. Simple position your compact plug between the Smart Home Controller and the remote room – your Smart Home socket strengthens the range of the wireless signal for:

Twinguards, Motion Detectors, Twists, Water Alarms and other Plug Compacts.

Plug Compact

The little all-rounder: Makes traditional electrical appliances smart in all situations

Plug Compact

Attractive, compact design

Continuous energy measurement thanks to the integrated energy gauge

Simple operation via app, manual button or voice command

Current status display by means of LED light

All standard cable connectors usable

Compatibility with high-performance devices up to 2300W

Increases the range of your Smart Home Controller for Twinguards, Motion Detectors, Twists, Water Alarms and other Plug Compacts.

Connected use only possible in combination with the Bosch Smart Home Controller

44.95 GBP

* Including 20% VAT

Further information

Technical Data

Product Name

Plug Compact BSP-GZ2

Article Number

8750001302

EAN

4062321299019

Weight

126 g

Dimensions (LxWxH)

58.5 x 63.7 x 58.5 mm

Dimensions Packaging (LxWxH)

91 x 92 x 103 mm

Supply voltage

230 V~/50 Hz

Current consumption

13 A max.

Protection class

IP20

Ambient temperature

–5 °C to +35 °C

Power consumption in stand-by mode

<1 W

Max. switching capacity

2990 W

Maximum humidity

90 % non-condensing

Load type

Ohmic load, cosφ ≥ 0,95

Relay

NO contact, 1-pin, μ contact

Relay switching cycles

50.000

Operating mode

Withstand impulse voltage

2500 V

Protection class

Operating principle

Typ 1

Degree of contamination

Radio protocol

ZigBee 3.0

Radio frequency

2,4 GHz

Radio range outdoors

<100 m

Maximum transmission power

10 mW

Software class

Class A

Receiver class

Measurement category

CAT II; measurement range: 0–2990 W; tolerance: 3 %; Frequency range 2 Hz to 2 kHz

Volume

24 db at a distance of 20 cm

Temperature of ball pressure test

125 °C

Box contents

1 Plug Compact

Online Manual and Warranty Information

Manuals

Plug Compact:

Download now

Bosch Smart Home App

Download the Bosch Smart Home App in your Apple App Store or Google Play Store.

System requirements
